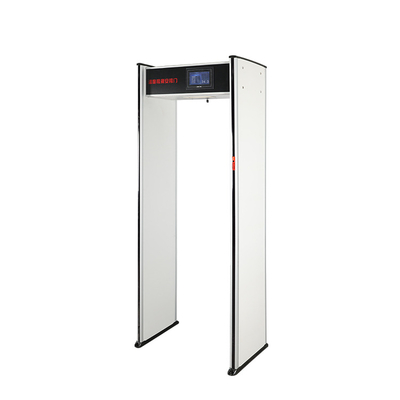

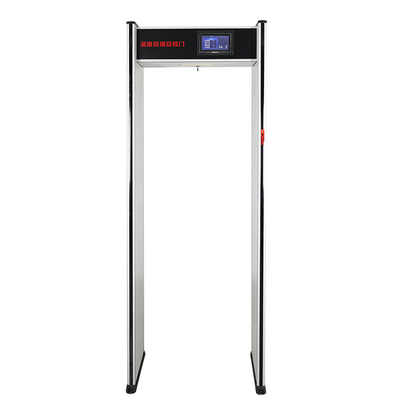

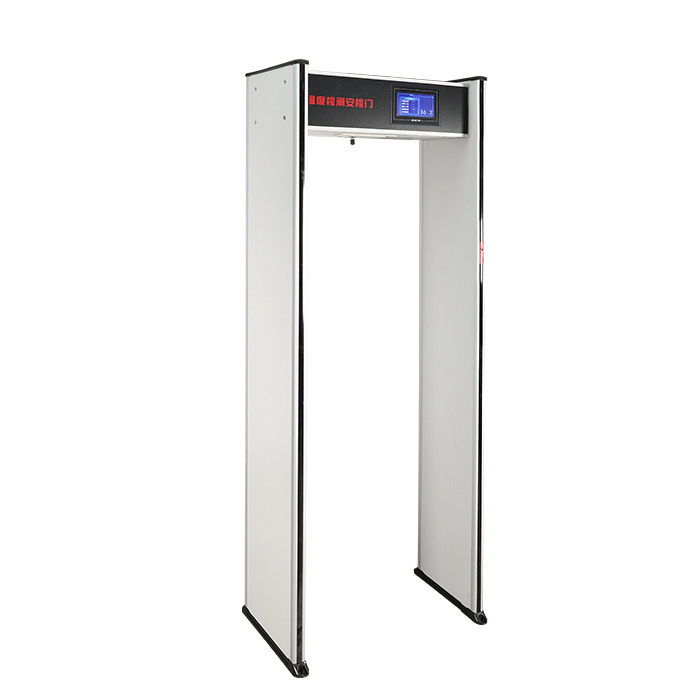

Walk Through Intelligent Body Temperature Measuring Security Gate
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Body Disinfection | Place Of Origin: | Guangdong, China |
|---|---|---|---|
| Brand Name: | JINDUN | Model Number: | 8811A |
| Detection Distance: | Forehead, 5-15CM | Response Time: | 0.1S |
| Display: | 7-inch Color Touch Screen | Temperature Measurement Module: | MELEXIS |
| Measure Time: | 0.5S-1.5S | Power Consumption: | ≤50W |
| External Power: | 220V 50Hz | (mm)Tunnel Dimension: | 2000(H) X 700(W) X 550(D) |
| (mm) Dimension: | 2202(H) X 820(W) X 550(D) |
Product Description
|
Product Features
|
|
|
|
Detection distance
|
Forehead, 5-15CM
|
|
|
Minimum resolution
|
0.1ºC
|
|
|
Temperature measurement accuracy
|
±0.5ºC(indoor temperature)
|
|
|
Response time
|
0.1S
|
|
|

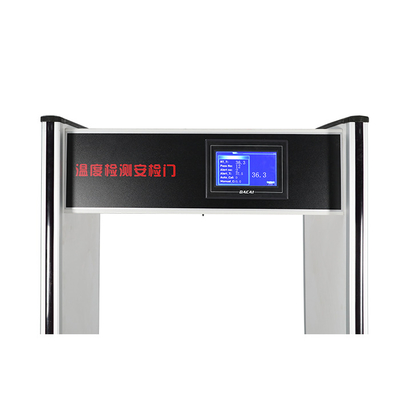

Display
|
7-inch color touch screen
|
|
|
Temperature measurement range
|
30ºC~42ºC
|
|
|
Temperature measurement module
|
MELEXIS
|
|
|
Repeat accuracy
|
±0.2ºC
|
|
|
measure time
|
0.5S-1.5S
|
|
|
Power consumption
|
≤50W
|
|
|
working environment
|
-10ºC─35ºC
|
|
|
External power
|
220V 50Hz
|
|
|
(mm)Tunnel Dimension
|
2000(H) x 700(W) x 550(D)
|
|
|
(mm) Dimension
|
2202(H) x 820(W) x 550(D)
|
|
Features:
When measuring, the person to be measured can place the forehead close to the position of the probe, about 5 cm away from the probe, and the forehead temperature can be detected. If it is not convenient to measure the forehead, you can also lift the wrist clothes, and bring the exposed wrist position close to the probe, and the distance from the probe is 5-10 cm. Compensation parameters can be adjusted from 0-9, 0 is suitable for relatively low temperature environment, and 5 is suitable for relatively warm environment. Users can adjust according to the use environment. (The smallest the number, the greater the compensation) The product is divided into six defense zones, and suspicious objects can be accurately displayed in correspondence. Sensitivity can be adjusted as needed, with a total of one hundred levels of sensitivity. LED doorpost light can display alarm zone visually and sound and light alarm at the same time. High sensitivity: In the middle of the door, a piece of coin metal can be detected, and the influence of belt buckles, leather shoes, bras can be ruled out, and more than 200 grams of copper, aluminum, zinc and other metals or controlled knives and guns can be detected. Password protection: The parameters can be password protected to prevent unauthorized personnel from operating. Additional functions:optional remote control can be used to control parameters, reserve switching signals, and can be connected to computers, cameras, three rollers, etc. Harmless: Harmless to cardiac pacemaker wearers, pregnant women, and magnetic media.FAQ
