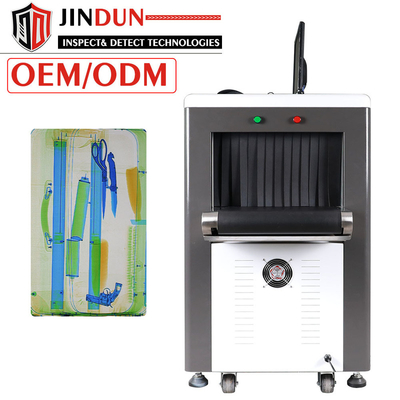

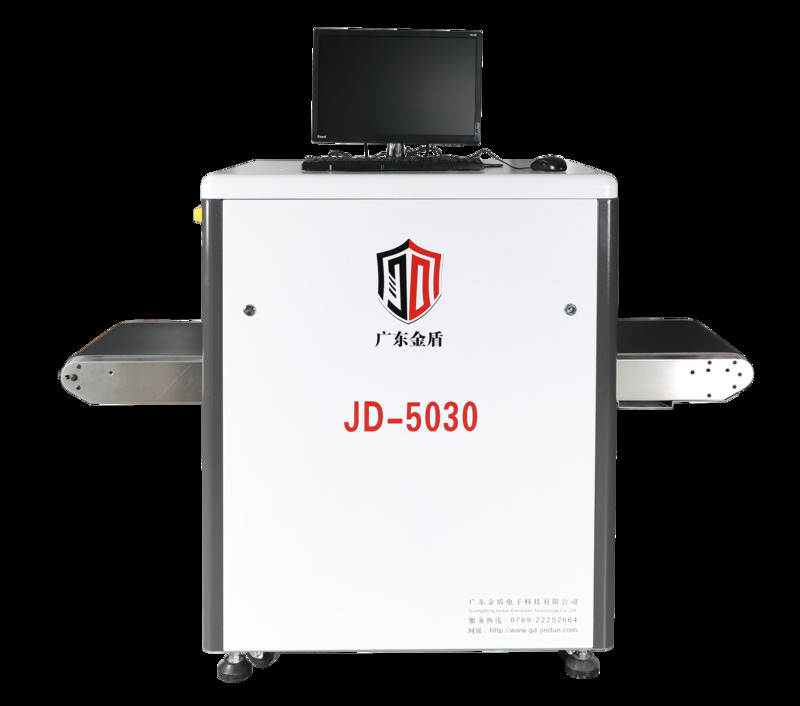

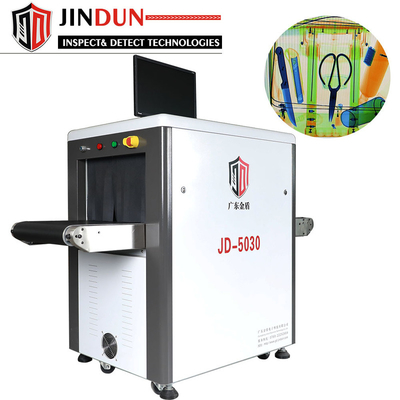

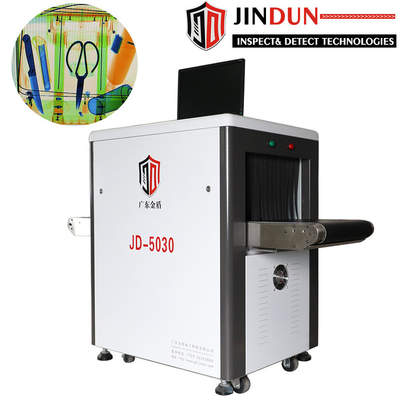

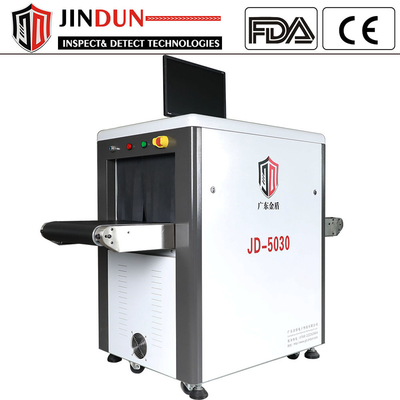

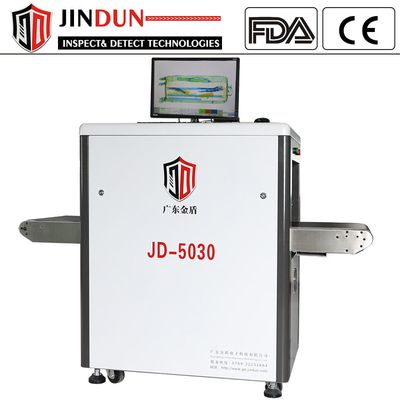

High Penetration X Ray Baggage Scanner Baggages Scanner

High Penetration X Ray Baggage Scanner Baggages Scanner

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  High Penetration X Ray Baggage Scanner Baggages Scanner Get Best Price

Product Details:
Place of Origin: Guangdong, China
Brand Name: JINDUN
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: $9,900.00(1 - 19 Sets) $8,900.00(20 - 199 Sets) $7,900.00(>=200 Sets)
Packaging Details: Wooden Case
Supply Ability: 5000 Set/Sets per Year
Detailed Product Description
Place Of Origin: Guangdong, China Brand Name: JINDUN
Product Name: X-ray Security Inspection Detector Baggages Scanner Type: Conveying X-ray Detector
Certificate: CE Form: Folding
Warranty: 1 Year Function: Security Check
Package: Wooden Case Pacakge After Sales Service: Online Technical Support
Tunnel Size: 600*500mm

High Penetration X-ray Security Inspection Detector Baggages Scanner
High Penetration X-ray Security Inspection Detector Baggages ScannerHigh Penetration X-ray Security Inspection Detector Baggages ScannerHigh Penetration X-ray Security Inspection Detector Baggages Scanner
Government departments: including courts, subways, high-speed rail, prisons, detention centers, labor camps, drug treatment centers, and public security bureaus.

Public places: including schools, gymnasiums, entertainment venues (disc halls, dance halls, etc.), airports, railway stations, bus stations, ports, exhibition halls, museums, banks, oil depots, power stations, etc.

High Penetration X-ray Security Inspection Detector Baggages Scanner


X-ray generator:

Ray beam direction Bottom-illuminated
Tube current 0.4~1.2mA(adjustable)
Tube voltage 100--160 KV(adjustable)
Beam divergence angle 80°
Cooling / duty cycle Sealed oil-cooled/100%


Tunnel size 600(Width)×500(Height)mm
Conveyor speed 0.22m/s
Conveyor belt rated load 180 kg
Spatial resolution Horizontal: 1.0mm diameter Vertical: 1.0mm diameter
Penetrating resolution 0.160 mm metal wire
Penetration 43 mm Steel plate
Film security Safe to ISO1600 film
Single check dose <1.9µGy
Leak dose <0.11µGy/h
Working temperature / humidity 0ºC~45ºC/20%~95% (Non-condensing)
Storage temperature / humidity -20ºC~60ºC/20%~95% (Non-condensing)
Leakage current 0.1mA
Insulation resistance 500MΩ
Operating Voltage 220VAC(±10%) 50±3HZ
Power loss 0.5KW(Max)
Noise level <53dB

Image processing system:


X-ray sensor L-shaped photodiode array detector multiple energy, 12bit depth
monitor High-resolution 19-inch LCD monitor (dual monitor screen
Color image display 24-bit true color display according to material material
Edge enhancement Object contour edges are sharper
Super image enhancement Clearer image details
High penetration display Increase the contrast of the bright areas in the image, making the areas that are easy to penetrate clearer
Low penetration display Improve the contrast of dark areas in the image and make hard-to-penetrate areas clearer
magnifier Local zoom function, real-time dynamic zoom
Brighten / Darken Brighten / Darken the Image
Pull back / forward Display the first 20 images and do any image processing on the images
Image restoration Image display returns to its original state
Image storage Any image can be saved in real time, and any image can be processed. It can be saved continuously.
Multi-energy color Organics are shown in orange, inorganics are shown in blue, and mixtures are shown in green
High energy / low energy Two energy switching displays
Drug explosives detection More auxiliary detection of some typical drugs and explosives and other dangerous items
High Quality Parts American SPELLMAN ray source, Japan, HAMMATSU detector, German INTERROLL roller.
Energy-saving design The machine can automatically sense objects, with luggage on the machine to start running, without luggage, the machine is stationary.
One-button shutdown control Just turn the key once when shutting down, the device will automatically shut down safely, reducing equipment failure.
Eco-friendly design The lead curtain has a protective film to prevent guests from touching the lead with their hands.
Dynamic screen switching The screen can be switched when it is still, and it can be switched freely when it is dynamic.
Alarm method When the conditions are met, sound and warning light signals are issued.
Mass storage Pictures are directly stored in the hard disk, the storage quantity is more than 1 million, and can be directly called for viewing.
High Penetration X Ray Baggage Scanner Baggages Scanner 4

Company Profile:

JINDUN- we are innovative factory who focus on detect and inspection technology. Offer flexible solutions for global customer.
JINDUN manufactures quality control equipment that inspects and detect. We keep your products safe & standard, and protect your brands! JINDUN-DETECT AND INSPECTION TECHNOLOGY FOR Safety CONTROL

1.Product Lines
(1) Infrared and disinfection Series
- Infrared temperature : Walk through temperature scanner, Mount on temperature scanner, portable & Mini Temp, Face recognition temperature terminal,

- Full Body Disinfection : Disinfection Tunnel, Disinfection Chamber

(2)Quality Control Series
Food grade Metal detection & Checkweigher & X-ray Inspection System
(3)Security Series
Walk through Metal Detector, X-ray Baggage Inspection, Hand Held Metal detector

JINDUN-we are your reliable partner in infrared temperature & disinfection, quality control and security inspection! Based on Dongguan, a major manufacturing hub in China, Jindun is a global manufacturer,principally offer Infrared and disinfection Series (Infrared temperature, Full Body Disinfection)Quality Control (Metal Detector, Checkweigher, X-ray inspection) Series,Security Series Product.

-We can help you develop and win more market share!
-Giving your best solution in sourcing metal detectors and X-Ray inspection, check weigher.
-Giving your best support on products perfect balance performance and cost

-Strong R&D team and strict QC system ensure the best quality, quickly adapt to market need
-High precision and reliable performance
-Most competitive price by actively seeking the best options and manage supply chain
-Large stock and quick delivery than our competitor
-1-year warranty and best after-sales service supported by our professional technicians

All JINDUN products go through design, engineering, and manufacturing process led by highly skilled and experienced engineers to manufacture high-quality, precise, intelligent and affordable quality control systems and security inspection.

We have been providing our customers with customized machines to their quality control and security needs for more than 17 years.

CE-certified products, our reputation is based on consistent quality and advanced technology, the result of continuous and far-reaching research and development. Rigorous quality standards ensure that we meet customer specifications each time, every time.

We are proud of our products and service. We are committed to ensuring quality control and security inspection by providing the best value to all our customers worldwide.

High Penetration X-ray Security Inspection Detector Baggages Scanner
