Product Details:
Payment & Shipping Terms:
|
Place Of Origin: | Guangdong, China | Brand Name: | JINDUN |
---|---|---|---|
Model Number: | Thermal Imaging-1 | Resolution: | 320X240 |
Working Band: | 8-14um | Frame Rate: | 9Hz |
Field Of View: | Horizontal 34.4, Vertical 25.8 | Lens: | 6.5mm |
Red thermography
|
Field of view
|
horizontal 34.4, vertical 25.8
|
|
Lens
|
6.5mm
|
|
Temperature measurement range
|
proofreading temperature -20 ºC -330 ºC, the highest display degree> 600 ºC
|
|
Temperature measurement accuracy
|
± 2 ºC or ± 2%
|
|
Temperature measurement
|
support the highest point, lowest point, center point temperature measurement and regional temperature measurement of the whole
picture |
|
Swatches
|
enhanced iron red, white hot, black hot, iron red, rainbow, red hot, cold blue, etc.
|
General
|
Interface
|
Standard Micro USB 2.0 power supply and data transmission
|
|
Language
|
Simplified Chinese/English
|
|
Working temperature
|
-20 ºC-+ 60 ºC
|
|
Storage temperature
|
-40 ºC-+ 85 ºC
|
|
Waterproof and dustproof
|
IP54
|
|
Product size
|
129mmX73mmX61mm (length X width X height)
|
|
Net weight
|
295g
|
|
Picture storage
|
BMP format
|
|

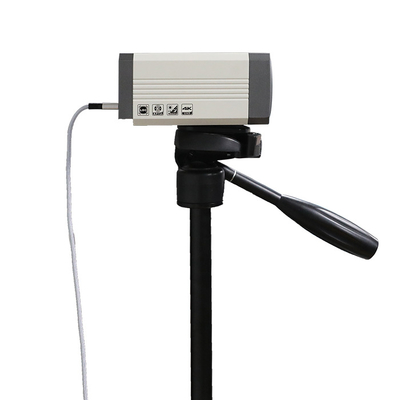

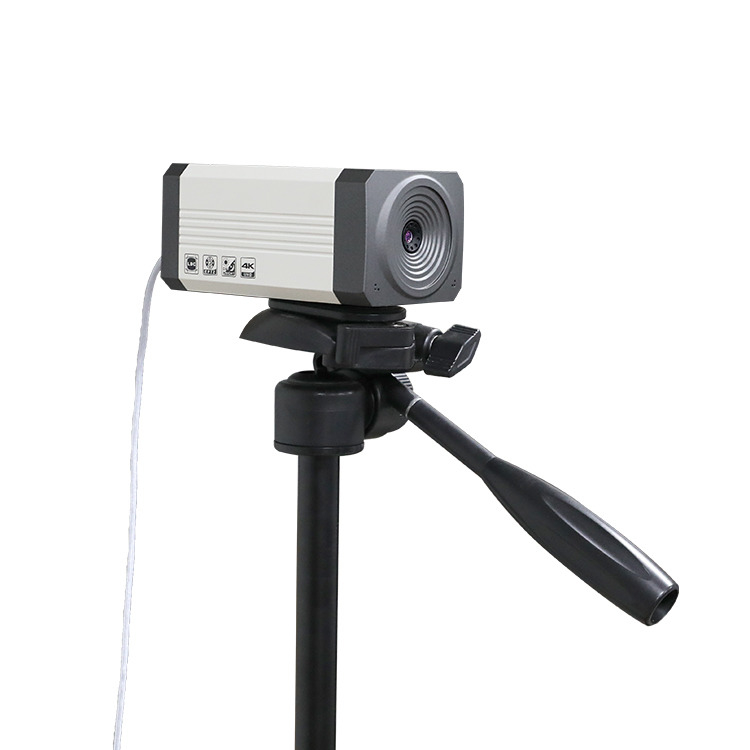

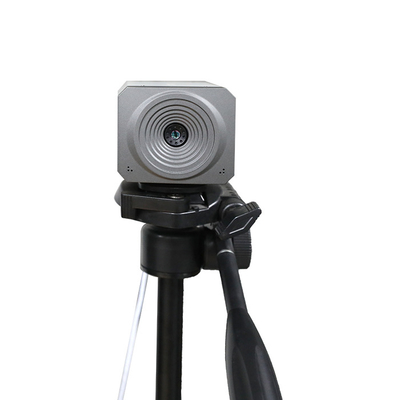

Installation
|
1/4 "screw holes (up and down 4 in total), can be installed with standard tripod or gimbal.
|
software
|

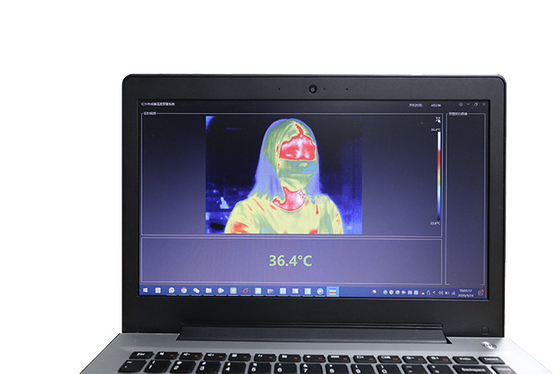

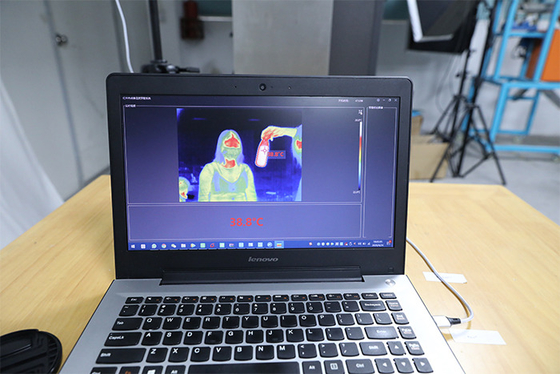

Temperature display
|
it can display the highest temperature, the lowest temperature and the center temperature at the same time.
|
|
Alarm
|
Supports the temperature alarm exceeding the set threshold (both high and low temperature), can sound alarm, at the same time
capture and store the photos of the alarm |
|
Picture frame temperature measurement
|
It supports picture frame temperature measurement, the number is not limited, and can be customized by the customer according to
the performance of the computer. |
|
Temperature adjustment
|
according to the different environment, you can set the output temperature adjustment
|
|
Manual photo
|
support
|
