Product Details:
Payment & Shipping Terms:
|
Place Of Origin: | Guangdong, China | Brand Name: | JINDUN |
---|---|---|---|
Resolution: | 256*192 | Thermal Imaging Lens Focal Length: | 3.2mm |
Pixel Size: | 12μm |

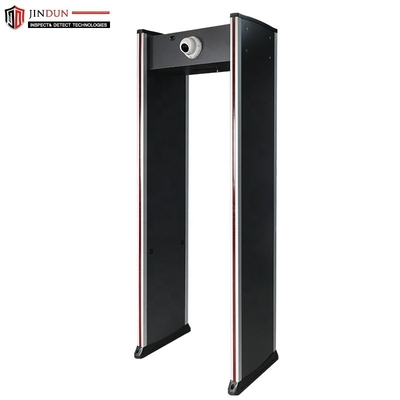

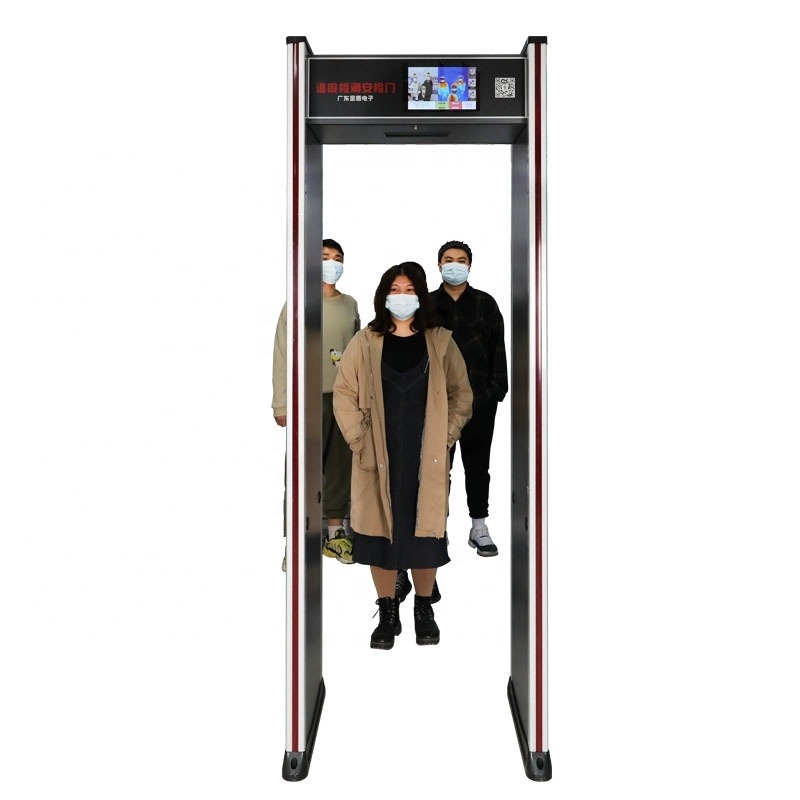

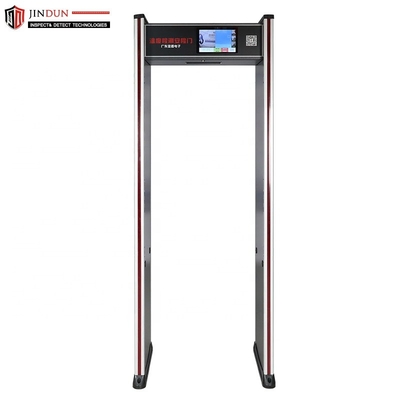

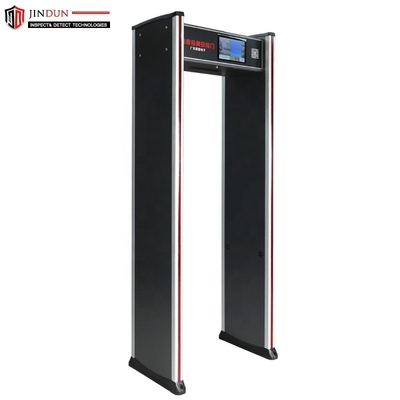

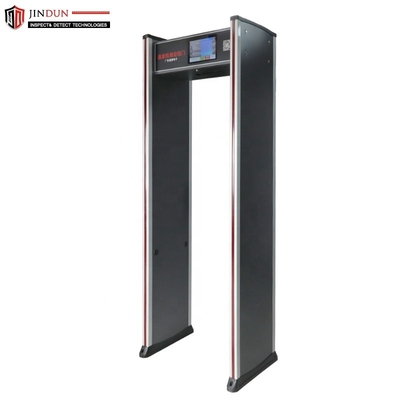

Walkthrough Infrared Thermal Imaging Camera Temperature Scanning Gate With Voice Alert
Infrared thermal imaging
|
powered by |
USB powered by 5V+-10% |
Power consumption
|
normal work <0.85W |
|
When the shutter is opened for calibration <1.6W |
||
sensor type |
Vanadium oxide uncooled infrared focal plane detector |
|
Resolution |
256*192 |
|
Field of view |
56°*42° ; Level:56°×vertical:42° |
|
Pixel size |
12μm |
|
Noise equivalent temperature difference |
≤60mk(<50mk@25℃ F#1.0 25Hz) |
|
Image capture frequency |
<25Hz |
|
Thermal imaging lens focal length |
3.2mm |
|
Thermal imaging focus mode |
Athermal fixed focus lens |
|
Thermal imaging lens aperture |
F#1.1 |
|
Thermal imaging gain control |
High gain mode |
|
Thermal imaging noise reduction |
2D Noise reduction |
|
Visible light
|
sensor type |
AR0230/1080P |
Pixel |
2 million |
|
Field of view |
62° |
|
Resolution |
1920*1080 |
|
Visible light noise reduction |
2D Noise reduction |
|
Signal to noise ratio |
Max 41dB |
|
White balance |
Auto white balance |
|
Visible light lens focal length |
4.35mm+/-5% |
|
Visible light lens aperture |
2.0+/-5% |
|
Picture encoding format |
Mjpg |
|
Temperature measurement parameters
|
Best working environment temperature |
25~32°C |
Biological temperature range |
32~42°C |
|
Environmental requirements |
Indoor without wind environment |
|
Temperature measurement accuracy |
Target temperature35°C~40°C:Temperature measurement accuracy±0.5°C Target temperature:Temperature measurement accuracy±3°C |
|
Regional temperature measurement |
Support full-screen multi-face automatic tracking temperature measurement, independent setting of alarm type |
|
Best temperature measurement distance |
2.5m |
|
Temperature abnormal alarm |
Support alarm maximum temperature and minimum temperature threshold setting |
|
Working humidity |
<90%(No condensation) |
|
|
Protection level |
A |
Overall product size |
2230*910*400mm |
|
Tunnel size |
2000 * 720mm |
|
Package Size |
To be determined |
|
Net weight |
35 |
|
Gross weight |
To be determined |
|
power supply |
Standard |
|
Ball machine
|
Spherical camera material |
Aluminum alloy |
Spherical camera size |
Bottom diameter 145*height 120*face diameter 90MM |
|
Display screen |
Display size |
260.54*178.54*25.5MM |
